# 蜂采 · 商品数据采集器 — 功能介绍与使用说明
# Fengcai · Product Data Scraper — Feature Guide & User Manual
---
## 目录 / Table of Contents
- [简介 / Introduction](#简介--introduction)
- [界面概览 / UI Overview](#界面概览--ui-overview)
- [步骤一：商品列表 / Step 1: Product List](#步骤一商品列表--step-1-product-list)
- [步骤二：详情页规则 / Step 2: Detail Page Rules](#步骤二详情页规则--step-2-detail-page-rules)
- [步骤三：执行采集 / Step 3: Run Scraping](#步骤三执行采集--step-3-run-scraping)
- [截图功能 / Screenshot Feature](#截图功能--screenshot-feature)
- [导出结果 / Export Results](#导出结果--export-results)
- [规则管理 / Rule Management](#规则管理--rule-management)
- [注意事项 / Notes](#注意事项--notes)
---
## 简介 / Introduction
**蜂采**是一款 Chrome 侧边栏扩展，专为电商选品、商品数据整理场景设计。无需编程基础，通过点选配置即可批量抓取商品详情页数据，并自动下载图片、截图，导出 Excel。
**Fengcai** is a Chrome side-panel extension for e-commerce product research and data collection. No coding required — configure rules by clicking, then batch-scrape product pages, auto-download images and screenshots, and export to Excel.
---

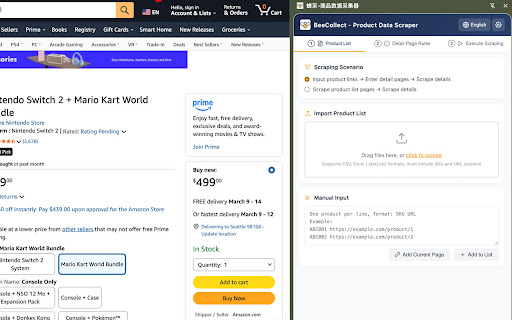

## 界面概览 / UI Overview
**中文**
插件以侧边栏形式运行，顶部为三步流程导航：
| 步骤 | 标签 | 说明 |
| ---- | ---------- | ------------------------------------ |
| 1 | 商品列表 | 管理待采集的商品 SKU 和链接 |
| 2 | 详情页规则 | 配置各站点的字段提取规则与截图设置 |
| 3 | 执行采集 | 配置采集参数、启动采集、查看实时日志 |
**English**
The extension runs as a side panel with a 3-step navigation:
| Step | Tab | Description |
| ---- | ----------------- | ----------------------------------------------------------------- |
| 1 | Product List | Manage SKUs and URLs to scrape |
| 2 | Detail Page Rules | Configure field extraction rules and screenshot settings per site |
| 3 | Run Scraping | Set scraping parameters, start scraping, view real-time logs |
---
## 步骤一：商品列表 / Step 1: Product List
### 两种模式 / Two Modes
**中文**
**① 手动输入模式（默认）**
- 导入 CSV 或 Excel 文件（需包含 `SKU`、`URL` 两列）
- 或逐行手动输入，格式：`SKU 空格 URL`
- 列表中 SKU 和 URL 均可点击，在新标签页中打开对应链接
- 支持全选/单选后批量删除
**② 列表页模式**
- 适合从分类页、搜索结果页批量采集
- 配置项：
- **列表入口 URL**：采集起始页面
- **列表项选择器**：定位每个商品卡片的 CSS 选择器
- **列表字段**：在列表页直接提取的字段（标题、价格、主图等）
- **翻页策略**：下一页按钮 / 无限滚动，支持配置终止条件
- **进入详情页补充抓取**：勾选后可配置详情链接选择器，抓取详情页数据
> 若列表入口 URL 与当前浏览器活动标签页一致，插件会直接复用该页面，不会新开标签页。
**English**
**① Manual Mode (Default)**
- Import a CSV or Excel file (must include `SKU` and `URL` columns)
- Or enter products manually, one per line: `SKU SPACE URL`
- Both SKU and URL in the list are clickable links (open in new tab)
- Supports select-all / single-select for bulk deletion
**② List Page Mode**
- Ideal for bulk collection from category or search results pages
- Configuration:
- **Entry URL**: Starting page for scraping
- **Item Selector**: CSS selector to locate each product card
- **List Fields**: Fields extracted directly from the list page (title, price, image, etc.)
- **Pagination**: Next-page button or infinite scroll, with configurable stop conditions
- **Enter Detail Page**: When checked, configures detail link selector to also scrape detail pages
> If the entry URL matches the currently active browser tab, the extension reuses that tab instead of opening a new one.
---
## 步骤二：详情页规则 / Step 2: Detail Page Rules
### 规则集 / Rule Sets
**中文**
每个**规则集**对应一个或多个站点，包含：
- **名称**：标识该规则集
- **URL 匹配**：正则表达式，可用逗号分隔多个，用于自动匹配商品 URL
- **字段规则列表**：定义要提取的字段
- **高级设置**：页面加载判定、自动滚动、前置脚本
- **截图设置**：见下方截图功能章节
采集时根据商品 URL 自动匹配规则集；无匹配则跳过该商品。
**English**
Each **rule set** corresponds to one or more sites and contains:
- **Name**: Identifier for the rule set
- **URL Pattern**: Regex patterns (comma-separated) to auto-match product URLs
- **Field Rules**: Define which fields to extract
- **Advanced Settings**: Page load conditions, auto-scroll, pre-execution script
- **Screenshot Settings**: See the Screenshot section below
During scraping, the matching rule set is automatically selected based on product URL; unmatched products are skipped.
---
### 字段规则配置 / Field Rule Configuration
**中文**
每个字段规则包含：
| 配置项 | 说明 |
| ------------ | ----------------------------------------------- |
| 字段名称 | 导出 Excel 的列标题 |
| CSS 选择器 | 支持多行（按顺序匹配第一个命中的） |
| 字段类型 | 文本 / 数字 / 图片 / 图片列表 / HTML / 元素属性 |
| 是否为列表 | 提取多个值（图片列表自动勾选） |
| 图片存储方式 | 无 / 主图 / 详情图 |
| 后处理函数 | JavaScript 函数，对提取结果进行二次处理 |
| 字段宽度 | 控制 Excel 导出时该列的宽度 |
支持：
- **元素拾取器**：点击按钮后在页面上点选元素，自动生成选择器
- **测试匹配**：实时在当前页面验证选择器命中情况
- **拖拽排序**：左侧手柄拖动调整字段顺序
**English**
Each field rule includes:
| Setting | Description |
| --------------------- | ----------------------------------------------------- |
| Field Name | Column header in the exported Excel |
| CSS Selector | Multi-line supported (first match wins) |
| Field Type | Text / Number / Image / Image List / HTML / Attribute |
| Is List | Extract multiple values (auto-checked for Image List) |
| Image Storage | None / Main Image / Description Image |
| Post-process Function | JavaScript to transform the extracted value |
| Column Width | Controls Excel column width on export |
Features:
- **Element Picker**: Click to pick an element on the page; selector is auto-generated
- **Test Match**: Instantly verify the selector against the current page
- **Drag to Reorder**: Drag the left handle to rearrange fields
---
### 高级设置 / Advanced Settings
**中文**
| 配置项 | 说明 |
| ------------ | --------------------------------------------- |
| 页面加载判定 | 元素出现 / 元素消失，配合选择器和超时时间使用 |
| 自动滚动 | 采集前自动滚动页面，触发懒加载内容 |
| 前置脚本 | 在提取数据前执行自定义 JS（支持 async/await） |
**English**
| Setting | Description |
| -------------- | ----------------------------------------------------------------- |
| Load Condition | Wait for element to appear / disappear, with selector and timeout |
| Auto Scroll | Scroll the page before extraction to trigger lazy-loaded content |
| Pre-script | Run custom JS before data extraction (supports async/await) |
---
## 步骤三：执行采集 / Step 3: Run Scraping
**中文**
| 配置项 | 说明 |
| ------------ | ------------------------------------------------------------------------ |
| 抓取间隔 | 相邻两个商品之间的等待时间（秒），建议 ≥ 5 |
| 图片命名规则 | 主图 / 详情图的文件名格式（支持 `{sku}`、`{index}`、`{ext}` 变量） |
| 图片存储方式 | 合并模式（主图/详情图共用目录）/ 分离模式（按 SKU 子目录） |
操作按钮：**开始 → 暂停 → 继续 → 停止**
右侧实时日志面板显示每条商品的采集状态、图片下载进度、截图结果等。
导出目录结构预览（第三个 Tab 底部）会实时反映当前配置，包括是否显示 `screenshots/` 文件夹。
**English**
| Setting | Description |
| --------------- | ------------------------------------------------------------------------------------------- |
| Scrape Interval | Wait time (seconds) between products; recommended ≥ 5 |
| Image Naming | File name pattern for main/description images (`{sku}`, `{index}`, `{ext}` variables) |
| Image Storage | Merged (shared dirs) / Separated (per-SKU subdirectories) |
Controls: **Start → Pause → Resume → Stop**
The real-time log panel on the right shows scraping status, image download progress, and screenshot results for each product.
The directory structure preview (bottom of Step 3 tab) updates live based on settings, including whether `screenshots/` is shown.
---
## 截图功能 / Screenshot Feature
**中文**
截图设置位于**详情页规则 Tab** 的字段列表下方，按规则集独立配置。
### 启用截图
勾选**启用截图**后，每个详情页抓取完成后自动截图。
### 截图模式
| 模式 | 说明 |
| -------------------------------- | --------------------------------------------------------- |
| 可见区域（默认） | 截取当前浏览器视口 |
| 全页面 | 截取完整页面（含滚动区域），使用 Chrome DevTools Protocol |
| 滚动到指定元素，然后截取可见区域 | 滚动到目标元素后截取视口 |
| 只截取指定元素 | 精确裁剪到元素边界，不含周围内容 |
> "全页面"和"只截取指定元素"模式需要 `debugger` 权限，截图完成后立即释放。
### 元素选择器
- 填写 CSS 选择器，指定目标元素
- 点击**拾取器按钮**（准星图标）从页面上直接选取元素
- 点击**测试按钮**（对勾图标）验证选择器是否能正确命中元素，并显示元素位置和尺寸信息
### 文件命名与保存位置
- 文件名：`{SKU}.png`（特殊字符自动替换为 `_`）
- 保存位置：导出目录下的 `screenshots/` 子文件夹
- 采集开始时自动预建该文件夹
### 导入/导出
截图设置随规则集一起保存，支持导入和导出 JSON 规则文件。
---
**English**
Screenshot settings are located **below the field list** in the Detail Page Rules tab, configured per rule set independently.
### Enable Screenshot
When **Enable Screenshot** is checked, a screenshot is taken automatically after each detail page is scraped.
### Screenshot Modes
| Mode | Description |
| -------------------------------------------- | --------------------------------------------------------------------------------- |
| Visible Area (Default) | Captures the current browser viewport |
| Full Page | Captures the entire page including scrolled content, via Chrome DevTools Protocol |
| Scroll to element, then capture visible area | Scrolls to the target element, then captures the viewport |
| Capture only the specific element | Precisely crops to the element's boundaries |
> "Full Page" and "Capture only the specific element" modes require the `debugger` permission, which is released immediately after each screenshot.
### Element Selector
- Enter a CSS selector for the target element
- Click the **Picker button** (crosshair icon) to pick an element directly from the page
- Click the **Test button** (checkmark icon) to verify the selector matches correctly, showing the element's position and dimensions
### File Naming & Save Location
- Filename: `{SKU}.png` (special characters replaced with `_`)
- Saved to: `screenshots/` subfolder inside the export directory
- The folder is automatically pre-created when scraping begins
### Import / Export
Screenshot settings are saved as part of the rule set and are included in JSON rule set import/export.
---
## 导出结果 / Export Results
**中文**
采集完成后自动导出：
- **Excel 文件**（`.xlsx`，含时间戳）：含表头样式、边框、自动筛选、冻结首行
- **图片文件**：按规则自动下载到对应目录
- **截图文件**：保存到 `screenshots/` 目录（若启用）
### 导出目录结构示例
```
导出目录/
├── 商品数据_2026-04-22T13-30-00.xlsx
├── images/
│ ├── ABC001/
│ │ ├── main/
│ │ │ ├── 01_ABC001.jpg
│ │ │ └── 02_ABC001.jpg
│ │ └── description/
│ │ └── ABC001_01.jpg
│ └── XYZ002/
│ └── ...
└── screenshots/ # 仅启用截图时存在
├── ABC001.png
└── XYZ002.png
```
**English**
After scraping, the following are exported automatically:
- **Excel file** (`.xlsx` with timestamp): styled headers, borders, auto-filter, frozen first row
- **Image files**: downloaded to the configured directories
- **Screenshots**: saved to `screenshots/` directory (if enabled)
### Export Directory Structure Example
```
export-dir/
├── ProductData_2026-04-22T13-30-00.xlsx
├── images/
│ ├── ABC001/
│ │ ├── main/
│ │ │ ├── 01_ABC001.jpg
│ │ │ └── 02_ABC001.jpg
│ │ └── description/
│ │ └── ABC001_01.jpg
│ └── XYZ002/
│ └── ...
└── screenshots/ # Only present when screenshot is enabled
├── ABC001.png
└── XYZ002.png
```
---
## 规则管理 / Rule Management
**中文**
| 操作 | 说明 |
| ----------------- | -------------------------------------------- |
| 导出规则集 | 将当前规则集（含截图设置）保存为 JSON 文件 |
| 导入规则集 | 从 JSON 文件加载规则集，可选择立即应用到当前 |
| 备份自定义规则 | 导出所有自定义规则集为一个 JSON 备份文件 |
| 全局配置导出/导入 | 包含所有规则集、设置项、列表配置的完整备份 |
**English**
| Action | Description |
| --------------------------- | --------------------------------------------------------------------- |
| Export Rule Set | Save current rule set (including screenshot settings) as a JSON file |
| Import Rule Set | Load a rule set from a JSON file; optionally apply immediately |
| Backup Custom Rules | Export all custom rule sets as a single JSON backup |
| Global Config Export/Import | Full backup including all rule sets, settings, and list configuration |
---
## 注意事项 / Notes
**中文**
- 抓取间隔建议 ≥ 5 秒，避免对目标网站造成压力
- 列表模式使用前建议先测试选择器和字段命中情况
- 部分站点需要登录后才能抓取完整数据
- 列表翻页最多 200 页，超限自动停止
- 使用全页面截图时，页面会短暂被 Debugger 附加，部分有反爬机制的站点可能会检测到
- 截图功能要求标签页在采集时保持激活状态（插件会自动切换）
**English**
- Set scrape interval ≥ 5 seconds to avoid overloading the target site
- Always test selectors and field matching before starting a full list scrape
- Some sites require you to be logged in to scrape full product data
- List pagination is capped at 200 pages; scraping stops automatically after that
- Full-page screenshot mode briefly attaches a Debugger to the tab; some anti-bot systems may detect this
- Screenshot capture requires the tab to be active; the extension switches to it automatically
